Specifications

6 DIP & 6 DIP-RB
6 DIP - 6 Display / 2 Cold Storage / Capacity 8 - 3 Gallon Tubs
6 DIP-RB - 6 Display / Capacity 6 - 3 Gallon Tubs

Exterior Dimensions / 36.25” L x 27.25” D x 51” H

6 DIP Interior Dimensions / 31.25” L x 21.50” D x 29.25” H
6 DIP-RB Interior Dimensions / 31.25” L x 21.25” D x 18.75”H
*Standard build tolerances apply.

Temp Range: Holds -10°F to +10°F
Compressor: 1/3 HP
Voltage: 115V / 8 A
Optional: 220V / 4 A

Shipping Weight: 340 lbs. (including crate)

Features

- Straight Glass Viewing Window
- Glass Canopy Construction
- Interior Stainless Steel
- Exterior White Enamel (Stainless Steel Upgrade)
- Welded & Polished Corners / No Sharp Edges
- Merchandising Flat Top Display
- Cold Wall Evaporators
- Anti-condensate Wire
- Poured Polyurethane Foam Insulation - Min .13 “K” Factor
- Forced‐air Tubular Clog Free Condenser
- PETG Lift Lids
- Frost Plates
- Night Covers
- LED Lights
- Manual Defrost & Operator Side Drain
- 7’ Grounded 3-Wire Power Cord
- Electronic Programmable Temperature Control

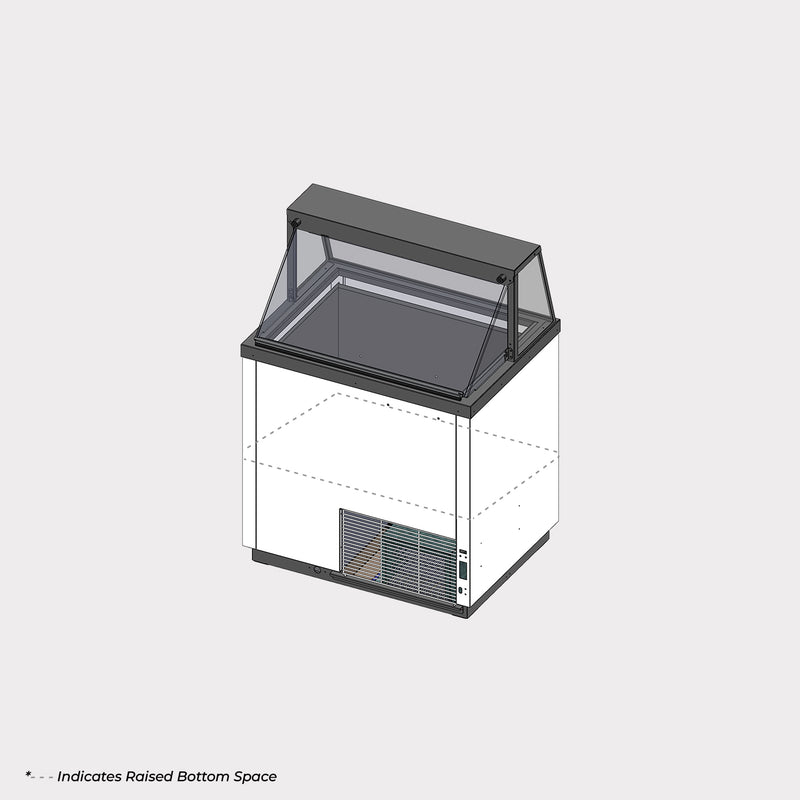

Raised Bottom (RB) Model
- Eliminates Pulling Heavy Tubs From Bottom
- Employee Side Breathing, Sits Flush Against Back Wall

Accessories

- N98112-CC / Can Clamp Kit
- N98112-6 / Can Skirt Kit
- N98112-6-G / Gelato Racking Kit
- N98112-6-R / Ropak Racking Kit


Options

- N98005 / Set of (4) 3” Casters
- N98005-2” / Set of (4) 2” Dual Casters
- YZ0396 / Dipper Well
